High Pressure Fuel Injection Pump 612601080207 For Weichai Engine 6BT

Product Categories

Guangzhou Wason Construction Machinery Co., Ltd.

Contact Now

Name: High Pressure Fuel Injection Pump 612601080207 For Weichai Engine 6BT
Brand: Weichai
Price: 1 USD

Brand Name : Weichai

Model Number : 612601080207

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, Western Union, Western Union

Supply Ability : 100/week

Delivery Time : 3-15

Packaging Details : international standand packing

name : Injector Assembly

color : black silver

material : metal

certificate : ISO9001

engine : 6BT

brand : Weichai

Part NO. : 612601080207

Contact Now

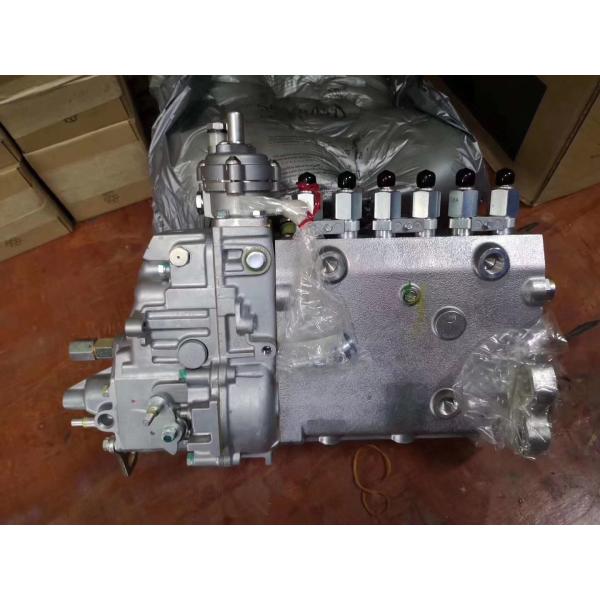

High Pressure Fuel Injection Pump 612601080207 For Weichai Engine 6BT

Product Description

High Pressure Fuel Injection Pump 612601080207 For Weichai Engine 6BT

Parameter table
Item	Description
Plunger diameter	12mm
Cam lift	14mm
Cylinder center distance	35(38)mm
Cylinder number	4~8
Pump pressure	115MPa
Max rotation speed	1400r/min
Installation	end flange or four-lug with ancillary shoring
Power range per cylinder	18~60kW
Emission Standard	CN Ⅲ,Tier Ⅲ
Main features
For diesel engine with cylinder diameter under 135mm
Overall sealed fuel pump 612601080207 housing,imdependent flange fuel pump 612601080207,horizontal oil duct,stable oil injection amount.Carbon coating plunger for special requirement.For vehicle,generator set,construction machinery etc.
